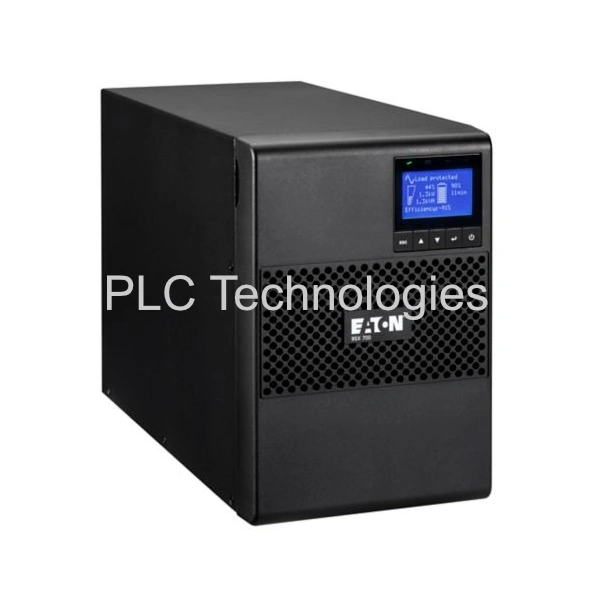

Eaton 9SX3000i 3000VA 220V UPS

The Eaton 9SX3000i is a 3000VA/2700W online double-conversion uninterruptible power supply (UPS) designed to deliver reliable power protection for critical applications such as IT systems, medical equipment, and industrial automation. With a power factor of 0.9, it provides more usable power compared to traditional UPS systems . The unit features an intuitive LCD interface for real-time monitoring of UPS status, load levels, and input/output voltages . It supports extended runtimes through the addition of external battery modules and offers advanced battery management features such as automatic battery testing and deep discharge protection . Communication options include USB and RS232 ports, along with a slot for optional communication cards, facilitating integration with power management software . Certified to international standards including IEC/EN 62040-1 and IEC/EN 62040-2, the Eaton 9SX3000i is a robust and efficient solution for safeguarding critical equipment against power disturbances.

Features

• Online Double-Conversion Technology: The 9SX700i employs online double-conversion topology, ensuring continuous, high-quality power by converting incoming AC to DC and then back to AC. This design provides consistent and clean power, protecting sensitive equipment from power anomalies.
• Advanced Battery Management (ABM): Eaton’s ABM technology extends battery life by up to 50% through an intelligent three-stage charging process. It includes automatic battery testing and deep discharge protection, enhancing battery performance and longevity.
• Intuitive LCD Interface: The UPS features a multilingual graphical LCD display that provides real-time information on UPS status, load levels, battery charge, and input/output voltages. This interface facilitates easy monitoring and management of the UPS system.
• Extended Runtime Capability: The 9SX700i supports the addition of up to four external battery modules (EBMs), allowing for extended backup times tailored to specific needs. The UPS automatically recognizes these modules, simplifying the expansion process.
• Versatile Connectivity and Management: Equipped with USB and RS232 ports, along with a slot for optional communication cards, the 9SX700i facilitates integration with Eaton’s Intelligent Power Software Suite. This enables seamless remote monitoring and management, ensuring efficient power management across various platforms.

Specifications

• Model: 9SX3000i
• Rating: 3000VA
• Power Output: 2700W
• Input Voltage: 230V default (200/208/220/230/240V)
• Input Frequency: 50-60 Hz
• Output Voltage: 230 V (+6%/-10%)
• Dimensions (D x H x W): 412 x 346 x 214mm
• Weight: 33.4kg
• Battery Type: Sealed, lead-acid
• User Interface: LCD Display
• Expansion Slots: One slot for optional communication card
