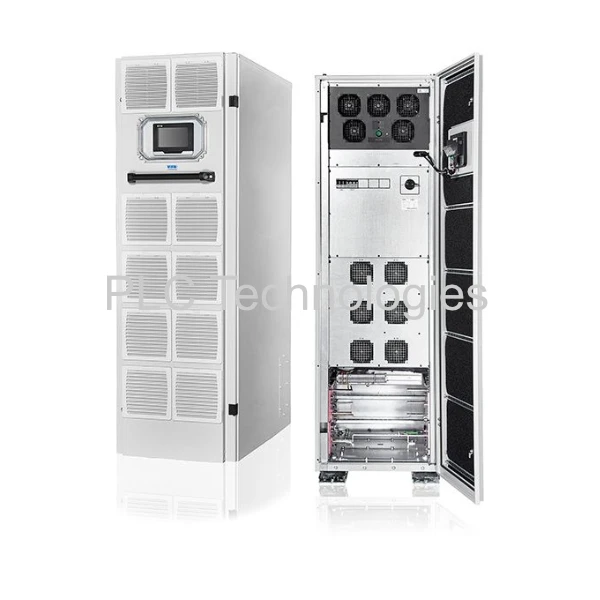

Eaton 9910-D3026 15KVA 400V UPS

In Stock

R130,113,00

All Prices Exclude VAT and Shipping.

About This Product

Model: 9910-D3026
Rating: 15KVA
Power Output: 13.5KW
UPS Topology: SCR-based rectifier, IGBT-based inverter, battery connect with DC link
Dimensions (W x D x H): 560 x 720 x 1100mm
Weight: 230kg
Degree of Protection: IP20
Display: 7’’ HMI, 3 x LEDs for notice and alarm
Communication Ports: 1x RS232 & RS485, with EPO button, 3 x dry contact (settable from LCD)
Rated Input Voltage: 380/400/415VAC (Three Phase)
Operating Frequency: 50 or 60Hz
Input Power Factor: 6-pulse：≥0.8
Rated Output Voltage: 380 Vac, three-phase, 3-wire+N+PE, (400, 415Vac selectable)
Overload Capacity without Bypass: 110% load, continuous operating, 125% load, 10 minutes, 150% load, 1 minute
Parallel Quantity: 8
Efficiency (Full Load): 86%
Automatic Bypass: Static Switch
Battery Nominal Voltage: VRLA: 360V (180 cells), 372V186 cells, 384V (192 cells)
