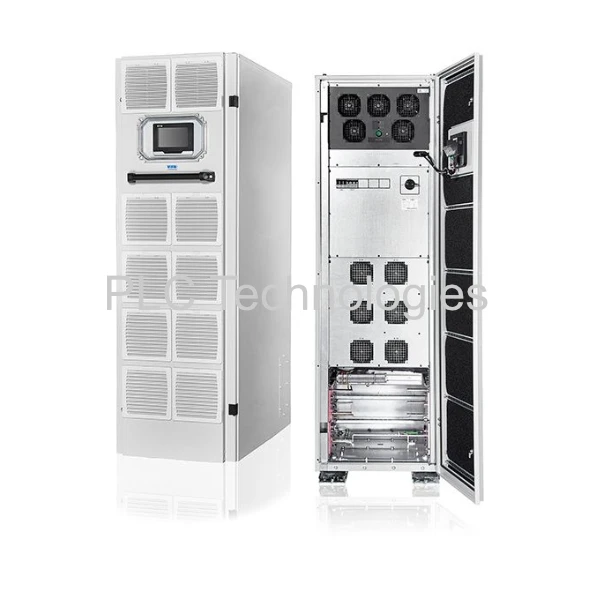

Eaton 9910-D3032 80KVA 400V UPS
9910-D3032 – 80KVA (72KW), 400VAC, Transformer-based
- Model: 9910-D3032
- Rating: 80KVA
- Power Output: 72KW
- UPS Topology: SCR-based rectifier, IGBT-based inverter, battery connect with DC link
- Dimensions (W x D x H): 800 x 750 x 1400mm
- Weight: 550kg
- Degree of Protection: IP20
- Display: 7’’ HMI, 3 x LEDs for notice and alarm
- Communication Ports: 1x RS232 & RS485, with EPO button, 3 x dry contact (settable from LCD)
- Rated Input Voltage: 380/400/415VAC (Three Phase)
- Operating Frequency: 50 or 60Hz
- Input Power Factor: 6-pulse：≥0.8
- Rated Output Voltage: 380 Vac, three-phase, 3-wire+N+PE, (400, 415Vac selectable)
- Overload Capacity without Bypass: 110% load, continuous operating, 125% load, 10 minutes, 150% load, 1 minute
- Parallel Quantity: 8
- Efficiency (Full Load): 86%
- Automatic Bypass: Static Switch
- Battery Nominal Voltage: VRLA: 360V (180 cells), 372V186 cells, 384V (192 cells)
Price
R263,086,00
Tax and Shipping Excluded.
