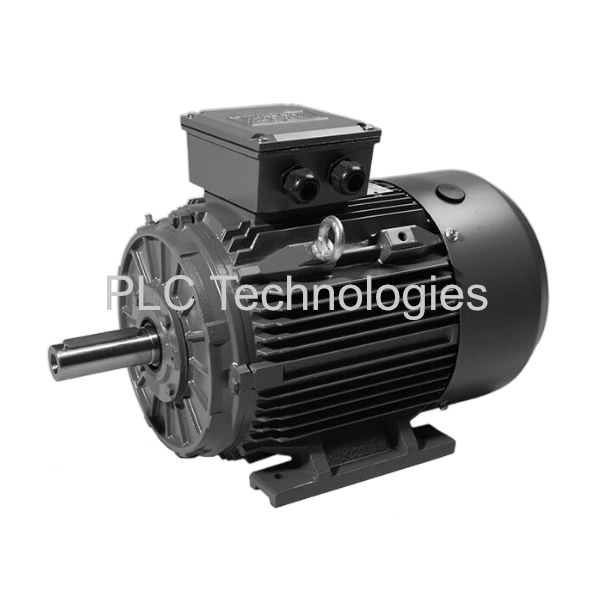

Techtop T3CR 200L1-2 30KW Electric Motor
T3CR 200L1-2 – 30KW, 2-pole, IE3, Premium Efficiency, Cast Iron, Electric Motor
- Model: T3CR 200L1-2
- Rating: 30KW
- Frame Size: 200L
- Poles: 2-pole
- Speed: 2945 rpm
- Configuration: Three Phase
- Shaft: 55mm
- Weight: 247kg
- Continuous duty service factor – S1
- In accordance with SANS/IEC 60034-2-1 standards
- Thermistors fitted as standard (frame 160 and above)
- Mounting: B3
- Protection degree: IP55
- Insulation class: F (155°C)
- RAL 7024 (graphite grey)
- Δ 220-240V (or) Y 380-415V 50Hz (frame 80 – 100)
- Δ 380-415V (or) Y 660-690V 50Hz (frame 112 – 355)
Price
R56,400,00
Tax and Shipping Excluded.
- Fast Nationwide Delivery
- Expert Technical Support
- Manufacturers Packaging
- Full Manufacturer Warranty
