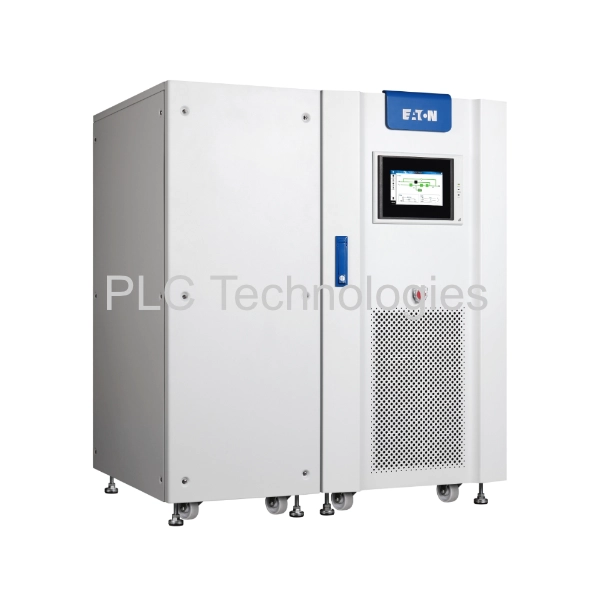

Eaton SG730-9910-D1026 15KVA 220V UPS

The Eaton SG730-9910-D1026 UPS (Uninterruptible Power Supply) is a high-performance, industrial-grade power protection solution designed for demanding environments where reliability and efficiency are critical. Built with robust components and advanced double-conversion online topology, the SG730-9910-D1026 ensures continuous, clean, and stable power to sensitive equipment, even during severe power disturbances. It features high energy efficiency, scalable battery runtimes, and a compact footprint, making it ideal for industrial automation, healthcare, mining and mission-critical IT applications. With intuitive monitoring and advanced connectivity options, the Eaton SG730-9910-D1026 delivers dependable power management while minimizing downtime and operational disruptions.

Features

• Double-Conversion Online Technology – Provides continuous, clean, and stable power, protecting sensitive equipment from all types of power disturbances.
• High Efficiency – Operates at up to 96% efficiency in double-conversion mode, reducing energy costs and heat output.
• Scalable Runtime – Supports external battery packs for extended backup time, allowing flexibility based on load requirements.
• Compact Footprint – Designed for space-constrained environments, delivering high power density without compromising performance.
• Advanced Monitoring and Connectivity – Features an intuitive LCD interface, remote monitoring capabilities, and integration with Eaton’s Intelligent Power Manager software for proactive management.

Specifications

• Model: SG730-9910-D1026
• Rating: 15KVA
• Power Output: 13.5KW
• UPS Topology: SCR-based rectifier, IGBT-based inverter
• Dimensions (W x D x H): 300 x 580 x 870mm
• Weight: 165kg
• Degree of Protection: IP20
• Display: 3.2’’ HMI, 5x LEDs for notice
• Communication Ports: 1x RS232/485, With EPO button, 2 x dry contact: 1 input dry contact (SELV), 1 output dry contact (SELV)
• Rated Input Voltage: 220/230/240VAC
• Operating Frequency: 50 or 60Hz
• Rated Output Voltage: 220 Vac, single-phase, (230, 240Vac selectable)
• Overload Capacity without Bypass: 110% load, continuous operating,125% load, 10 minutes,150% load, 1 minute
• Efficiency (Full Load): 83.5%
• Automatic Bypass: Static Switch
• Battery Nominal Voltage: VRLA: 180V (90cells), 192V (96 cells)，204V (102 cells)
