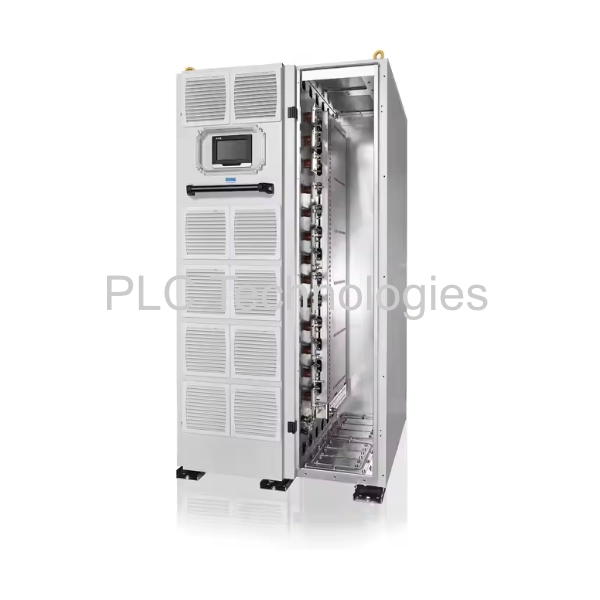

Eaton 9910-D3035 160KVA 400V UPS

The Eaton 9910-D3035 93HD UPS is a high-performance uninterruptible power supply designed for mission-critical applications that demand maximum efficiency and reliability. Engineered with Eaton’s advanced three-level converter technology, the 93HD delivers industry-leading energy efficiency of up to 97% in double-conversion mode and up to 99% in Energy Saver System (ESS) mode. This results in significant energy savings and reduced total cost of ownership. The compact design of the 9910-D3035 UPS provides high power density, allowing for more power in a smaller footprint—ideal for data centers and industrial environments with space constraints. With robust scalability, hot-swappable components, and seamless integration with Eaton’s intelligent power management software, the 9910-D3035 UPS ensures continuous power protection and streamlined monitoring for critical infrastructure.

Features

• High Efficiency – Delivers up to 97% efficiency in double-conversion mode and up to 99% in Energy Saver System (ESS) mode, reducing energy costs and heat output.
• Compact Footprint – Offers a high power density design, meaning more power in less space, ideal for data centers and facilities with limited room.
• Scalability – Modular architecture allows for easy capacity expansion and redundancy as your power needs grow.
• Advanced Battery Management – Enhances battery performance, life, and reliability through intelligent charging and monitoring.
• Integrated Power Management – Compatible with Eaton’s Intelligent Power Manager (IPM) software for real-time monitoring, control, and automation across your power infrastructure.

Specifications

• Model: 9910-D3035
• Rating: 160KVA
• Power Output: 144KW
• UPS Topology: SCR-based rectifier, IGBT-based inverter, battery connect with DC link
• Dimensions (W x D x H): 1245 x 855 x 1900mm
• Weight: 1015kg
• Degree of Protection: IP20
• Display: 7’’ HMI, 3 x LEDs for notice and alarm
• Communication Ports: 1x RS232 & RS485, with EPO button, 3 x dry contact (settable from LCD)
• Rated Input Voltage: 380/400/415VAC (Three Phase)
• Operating Frequency: 50 or 60Hz
• Input Power Factor: 6-pulse：≥0.8
• Rated Output Voltage: 380 Vac, three-phase, 3-wire+N+PE, (400, 415Vac selectable)
• Overload Capacity without Bypass: 110% load, continuous operating, 125% load, 10 minutes, 150% load, 1 minute
• Parallel Quantity: 8
• Efficiency (Full Load): 86%
• Automatic Bypass: Static Switch
• Battery Nominal Voltage: VRLA: 360V (180 cells), 372V186 cells, 384V (192 cells)
