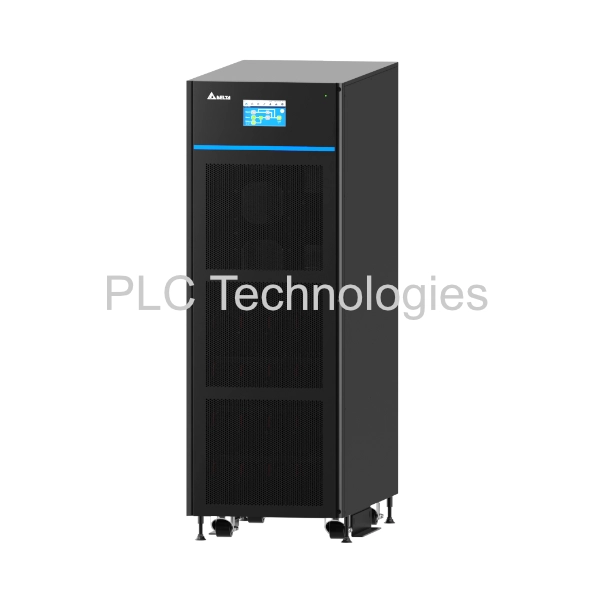

Delta HPH-100K 100KVA 400V UPS

The Delta HPH-100K UPS is a high-performance, three-phase, true online double-conversion uninterruptible power supply designed to deliver exceptional power protection and efficiency for medium-sized data centers and mission-critical applications. Delta’s true online double-conversion HPH-100K UPS is a perfect solution for small and medium data centers and mission critical applications requiring highly reliable power protection and unbeatable energy efficiency. The innovation behind the Ultron HPH Series UPS design incorporates low iTHD (< 3 %), 96% AC-AC and 99% ECO mode energy efficiency for increased Total Cost of Ownership (TCO) savings. Fully rated power (kVa=kW) without de-rating, the HPH-100K UPS offers leading AC-AC efficiency without sacrificing any available power requirements. Increased availability is further augmented through Ultron HPH watch-dog design. Quite simply, the HPH Series UPS from Delta is a best-in-class (three phase 60/80/100/120 kVA UPS) power protection system that combines maximum available power, unsurpassed energy efficiency, and superior power performance with a significant advantage: TCO savings. HPH is an ideal choice for datacenters as well as for industries involved in factory equipment, communication systems, computer network systems, medical systems, monitoring systems and more.

Features

• Best-in-Class Power Performance and Efficiency
  • Full-rated power output (kVA = kW) ensures maximum power availability.
  • High AC-AC efficiency up to 96% reduces energy costs.
  • Low input harmonic distortion (iTHD < 3%) and high input power factor (> 0.99) minimize upstream infrastructure needs.
• Assured Reliability
  • Wide input voltage range supports operation in unstable electrical environments and extends battery life.
  • DSP-based design reduces component count, lowering failure risk.
  • Redundant auxiliary power and static switch control circuits (in HPH-100/120K) eliminate single points of failure.
  • Manual bypass ensures continuous power during UPS maintenance.
• Greater Flexibility
  • Supports N+X redundancy and hot stand-by configurations.
  • Adjustable charging current/voltage for various battery setups.
  • Flexible battery configuration optimizes cost and performance.
• Superior Serviceability and Management
  • Swappable components and front-access design enable fast, easy maintenance.
  • Multiple communication interfaces support remote monitoring and management
