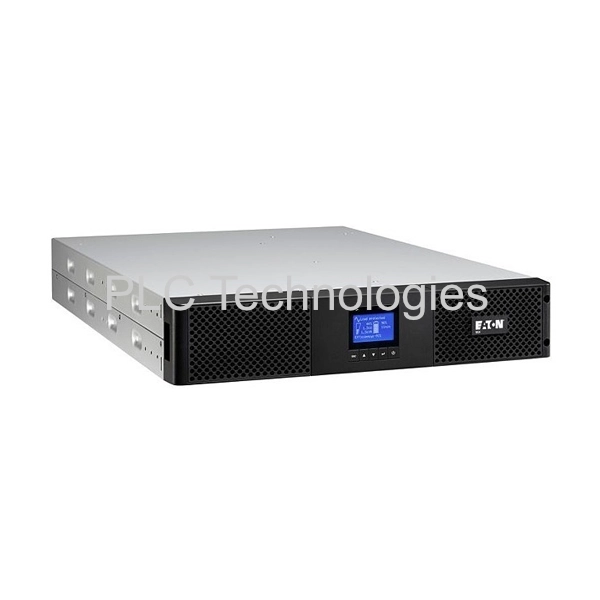

Eaton 9SX1500iR 1500VA 220V UPS

The Eaton 9SX1500iR is a 1500VA (1350W) online double-conversion UPS designed to provide reliable power protection for critical systems in IT, medical, and industrial environments. With a power factor of 0.9, it delivers more usable power compared to traditional UPS systems. The unit features a compact 2U rackmount design, making it suitable for installations where space is at a premium. It includes an intuitive LCD interface for real-time monitoring of UPS status, load levels, and input/output voltages. The 9SX1500iR supports extended runtimes through the addition of external battery modules and offers advanced battery management features such as automatic battery testing and deep discharge protection. Communication options include USB and RS232 ports, along with a slot for optional communication cards, facilitating integration with power management software. Certified to international standards including IEC/EN 62040-1 and IEC/EN 62040-2, the Eaton 9SX1500iR is a robust and efficient solution for safeguarding critical equipment against power disturbances.

Features

• Online Double-Conversion Technology – Provides seamless power protection by isolating equipment from power disturbances
• Advanced Battery Management (ABM) – Extends battery life by up to 50% with intelligent charging and automatic testing.
• Intuitive LCD Interface – Displays real-time UPS status, load levels, and input/output voltages for easy monitoring.
• Extended Runtime Capability – Supports external battery modules to increase backup time.
• Versatile Connectivity – Includes USB, RS232, and optional network cards for remote monitoring and management.

Specifications

• Model: 9SX1500iR
• Rating: 1500VA
• Power Output: 1350W
• Input Voltage: 230V default (200/208/220/230/240/250V)
• Input Frequency: 50-60 Hz
• Output Voltage: 230V
• Dimensions (D x H x W) 438 x 86.5 x 438mm
• Weight: 18.4kg
• Battery Type: Sealed, lead-acid
• User Interface: LCD Display
• Expansion Slots: One slot for optional communication card
