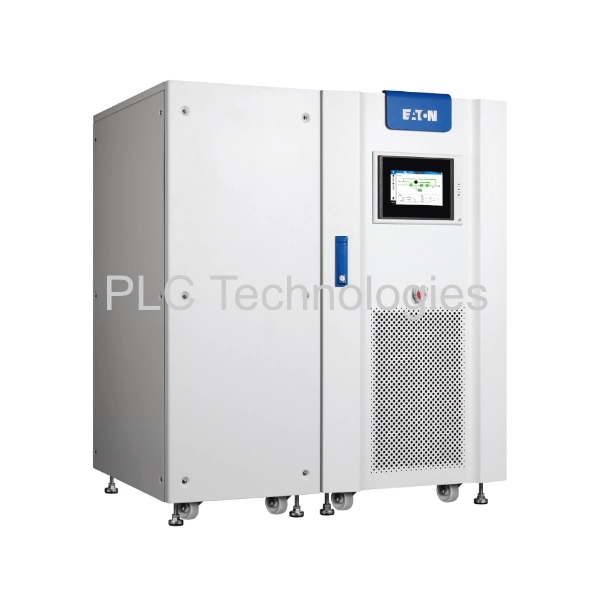

Eaton 9910-D1027 20KVA 400V UPS

The Eaton 9910-D1027 UPS (Uninterruptible Power Supply) is a high-performance three phase in and single phase out, industrial-grade power protection solution designed for demanding environments where reliability and efficiency are critical. Built with robust components and advanced double-conversion online topology, the 9910-D1027 ensures continuous, clean, and stable power to sensitive equipment, even during severe power disturbances. It features high energy efficiency, scalable battery runtimes, and a compact footprint, making it ideal for industrial automation, healthcare, mining and mission-critical IT applications. With intuitive monitoring and advanced connectivity options, the Eaton 9910-D1027 delivers dependable power management while minimizing downtime and operational disruptions.

Features

• Double-Conversion Online Technology – Provides continuous, clean, and stable power, protecting sensitive equipment from all types of power disturbances.
• High Efficiency – Operates at up to 96% efficiency in double-conversion mode, reducing energy costs and heat output.
• Scalable Runtime – Supports external battery packs for extended backup time, allowing flexibility based on load requirements.
• Compact Footprint – Designed for space-constrained environments, delivering high power density without compromising performance.
• Advanced Monitoring and Connectivity – Features an intuitive LCD interface, remote monitoring capabilities, and integration with Eaton’s Intelligent Power Manager software for proactive management.

Specifications

• Model: 9910-D1027
• Rating: 20KVA
• Power Output: 18KW
• UPS Topology: SCR-based rectifier, IGBT-based inverter, battery connect with DC link
• Dimensions (W x D x H): 560 x 720 x 1100mm
• Weight: 235kg
• Degree of Protection: IP20
• Display: 7’’ HMI, 3x LEDs for notice and alarm
• Communication Ports: 1x RS232&RS485, with EPO button, 3*dry contact (settable from LCD)
• Rated Input Voltage: 380/400/415VAC
• Operating Frequency: 50 or 60Hz
• Input Power Factor: 6-pulse：≥0.8
• Rated Output Voltage: 220 Vac, single-phase, (230, 240Vac selectable)
• Overload Capacity without Bypass: 110% load, continuous operating,125% load, 10 minutes,150% load, 1 minute
• Parallel Quantity: 8
• Efficiency (Full Load): 86.3%
• Automatic Bypass: Static Switch
• Battery Nominal Voltage: VRLA: 360V(180 cells)，372V(186 cells)，384V (192 cells) ，396V(198 cells)，408V (204 cells)
