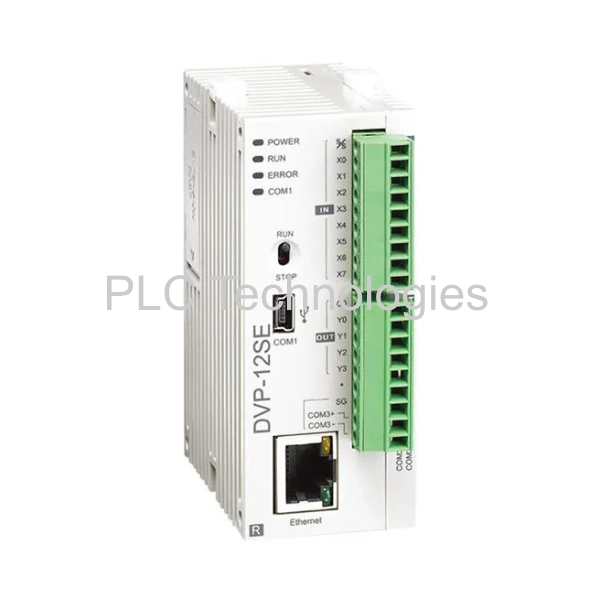

Delta DVP12SE11R PLC Controller

The Delta DVP12SE11R PLC is a compact, network-capable programmable logic controller designed for modern industrial automation applications. It features 8 digital inputs and 4 digital outputs, along with built-in mini USB, Ethernet, and dual RS-485 ports, facilitating seamless integration into various systems. With a program capacity of 16k steps and a data register of 12k words, the DVP-SE Series offers high-speed instruction execution—0.64μs for LD and 2μs for MOV instructions—ensuring efficient performance in time-sensitive operations. The built-in Ethernet port supports MODBUS TCP and Ethernet/IP protocols, enhancing communication capabilities. Additionally, the IP Filter function acts as a firewall, providing the first line of defense against malware and network threats. The DVP12SE11R PLC supports DVP-S series left-side and right-side modules, allowing for flexible system expansion. Notably, it operates without the need for a battery, with its real-time clock maintaining operation for up to 15 days after power-off, reducing maintenance requirements. These features make the DVP-SE Series suitable for applications such as remote device monitoring, production line monitoring, building automation, printing machines, and container fillers.

Features

• Program capacity: 16k steps Data register: 12k words
• Software: ISPSoft
• Ultra slim: DVP12SE – 37.4 mm / DVP26SE – 46 mm wide
• No battery required: RTC function operates for up to 15 days after power off
• 2 x RS485 ports, Ethernet port supports Modbus TCP and EtherNet/IP (explicit message)

Specifications

• Model: DVP12SE11R
• Digital Inputs: 8D
• IDigital Outputs: 4DO (Relay)
• Supply Voltage: 24VDC
• Communication: Ethernet
• Expandable I/O: Yes (optional)
