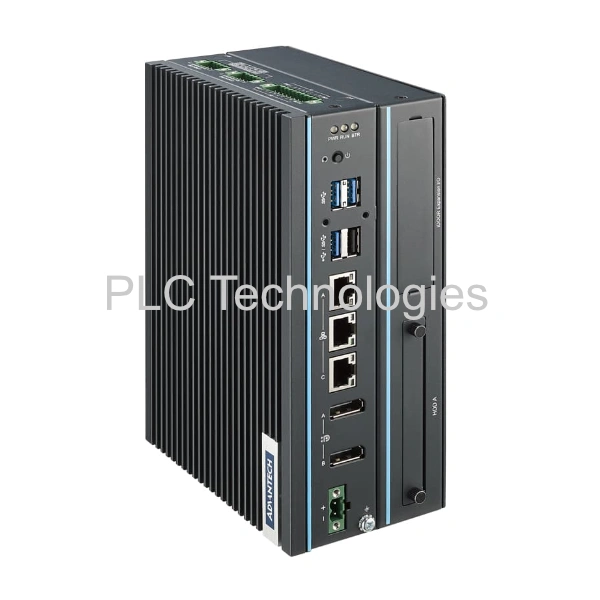

Advantech UNO-148 Embedded Computer

The Advantech UNO-137 is a compact, fanless DIN-rail embedded computer designed for industrial automation and edge computing applications. It is powered by an Intel® Atom® E3940 quad-core processor running at 1.6 GHz and comes equipped with 8 GB of DDR3L memory. The system supports a wide operating temperature range from -40°C to 70°C, making it suitable for deployment in harsh environments. Its rugged aluminum housing and IP40-rated enclosure ensure durability and reliability in industrial settings. The UNO-137 offers versatile connectivity options, including two Gigabit Ethernet ports, three USB 3.2 ports, one USB 2.0 port, two isolated RS-232/422/485 serial ports, and dual DisplayPort outputs. It also features eight isolated digital inputs and eight isolated digital outputs, providing flexibility for various I/O requirements. For storage, the system includes a 2.5″ SATA drive bay and an M.2 B-key slot, accommodating both SSDs and cellular modules. Expansion capabilities are enhanced with a full-size mini PCIe slot and support for Advantech’s iDoor technology, allowing for the integration of additional industrial Fieldbus, wireless communication, and I/O modules. Security is bolstered by an onboard TPM 2.0 chip, and the system is certified for Microsoft Azure IoT Edge and AWS IoT Greengrass, facilitating seamless integration into cloud-based industrial IoT deployments.

Features

UNO-148

• Port isolation for 8 x DI, 8 x DO, 4 x COM
• Supports M.2 M key 2280 NVMe SSD storage, M.2 B key 2242 storage, 3042/3052 cellular modules, and M.2 E Key 2230 wi-fi modules
• Dual 2500BASE-T Ethernet supports Time-Sensitive Network(TSN) technology
• Remote out-of-band (OOB) power management with Advantech iBMC technology
• Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified

UNO-148 V2

• Intel® Core™ processors (13th Gen) with 8GB DDR5 memory
• Port isolation for 8 x DI, 8 x DO, 4 x COM
• Supports 2 x M.2 M key 2280 NVMe SSD storage (support RAID)
• Supports 1 x M.2 E Key 2230 wi-fi module and 1 x miniPCIe with Nano SIM card slot
• Dual 2500 BASE-T Ethernet supports Time-Sensitive Network (TSN) technology
• Modular design for optional iDoor extension
• Support Windows 11 IoT Enterprise LTSC
